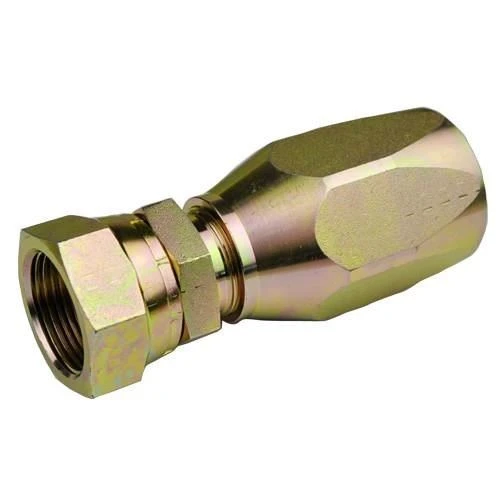

22618D-R5 BSP WANITA 60 ° kerusi CONE boleh digunakan semula Fitting
| BAHAGIAN NO. | KHAS E | HOSE DASH | DIMENSI | |||
| A | C | S1 | S2 | |||
| 22618D-04-04R5 | G1 / 4" X19 | 04 | 26 | 5.5 | 14 | 19 |
| 22618D-06-05R5 | G3 / 8" X19 | 05 | 29.1 | 6.3 | 17 | 22 |
| 22618D-06-06R5 | G3 / 8" X19 | 06 | 30 | 6.3 | 17 | 22 |
| 22618D-08-08R5 | G1 / 2" X14 | 08 | 35 | 7.5 | 19 | 27 |
| 22618D-10-10R5 | G5 / 8" X14 | 10 | 35.5 | 9.5 | 22 | 30 |
| 22618D-12-12R5 | G3 / 4" X14 | 12 | 38.5 | 10.9 | 27 | 32 |
| 22618D-16-16R5 | G1" X11 | 16 | 37 | 11.7 | 32 | 41 |
| 22618D-20-20R5 | G1.1 / 4" X11 | 20 | 41.5 | 11 | 41 | 50 |
Kami pakar dalam semua jenis kelengkapan selang hidraulik, penyesuai, ferrules, bebibir.
Kami dapat menyediakan perkhidmatan OEM dan mengembangkan produk baru mengikut gambar dan contoh pelanggan'
Bahan: keluli karbon, keluli tahan karat, tembaga, dll.
Rawatan permukaan: Berlapis zink, bersalut Zn-Ni, bersalut Cr3, Cr6
Standard: SAE, DIN, ISO, BS.
Thread: metrik, bsp, bspt, npt, jic, sae, orfs, npsm, dll.
 |
