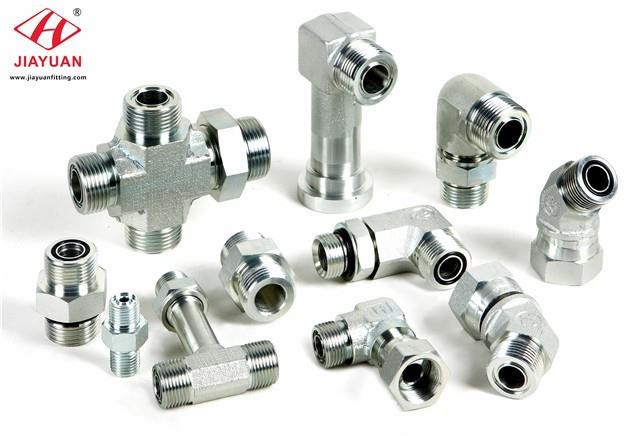

Adaptor hidraulik adalah salah satu jenis kelengkapan hidraulik, untuk menyambungkan tiub hidraulik, pemasangan selang hidraulik dan kelengkapan tiub. Terdapat pelbagai nama seperti hidraulik penyesuai (UK), kelengkapan hidraulik (paling popular), penyambung hidraulik dll.
Jenis penyesuai hidraulik dengan standard yang berbeza seperti berikut:
Piawaian SAE Amerika seperti SAE J514, SAE J1453, SAE J518 dan lain-lain, kelengkapan tiub hidraulik benang SAE, penyesuai paip, penyesuai bebibir, kelengkapan paip.
Benang JIS standard Jepun JIS B2351 inci dan kelengkapan hujung benang metrik JIS B8363 dan penyesuai untuk pemasangan hos hidraulik.
Piawai dan penyambung hidraulik benang standard BS 5200, benang BSP.
Standard Jerman DIN 2353,Kelengkapan tiub mampatan benang metrikdengan cincin pemotong, kelengkapan dan gandingan metrik tanpa flar.
Jiayuan adalah pengeluar kelengkapan penyesuai hidraulik yang terkemuka dan profesional, kami menawarkan pelbagai standard dan saiz tersuai seperti penyesuai hos hidraulik, penyesuai hidraulik metrik, penyesuai hidraulik sae, penyesuai bebibir sae, penyesuai penukaran antara satu sama lain jenis JIC, metrik, npt, orfs , lelaki hingga perempuan dll
Jiayuan membuat kemajuan yang baik dalam pengurusan kawalan kualiti dan teknologi pengeluaran automasi, berusaha untuk memimpin dalam bidang kelengkapan hidraulik. Kami mengawal kualiti produk dengan ketat dari bahan hingga produk siap mengikut ISO 9001, laporan PPAP termasuk laporan komposisi bahan kimia, pemeriksaan dimensi, ujian semburan garam, ujian tekanan, ujian tork dan laporan kebersihan dll.
Produk kami digunakan dalam pelbagai peralatan industri seperti mesin pembinaan kejuruteraan, peralatan pertanian, kenderaan komersial, peralatan petrokimia, pembinaan kapal maritim dan lain-lain. Produk kami dieksport ke Jerman, Jepun, UK, Itali, Kanada, Rusia, Brazil dll.
Sekiranya anda mempunyai pertanyaan, jangan ragu untuk menghubungi kami.
jyray@72338.com
Pelbagai ukuran standard penyesuai hidraulik JIC, ORFS, SAE flange, DIN, JIS seperti berikut:
DIN 2353 24 ° hujung kon (DIN 3861 / ISO 8434-1) dimensi kelengkapan tiub mampatan
TubeO.D. | ||||||
Saiz | T1 | Ø D3mm | Ø D4mm | Ø D5mm | L1mm | L2mm |
04-LL | M08×1.0 | 04 | 5.0 | 3.0 | 4.1 | 8 |
06-LL | M10×1.0 | 06 | 7.5 | 4.5 | 5.6 | 8 |
08-LL | M12×1.0 | 08 | 9.5 | 6.0 | 5.6 | 9 |
10-LL | M14×1.0 | 10 | 11.5 | 8.0 | 5.6 | 9 |
12-LL | M16×1.0 | 12 | 13.5 | 10.0 | 6.1 | 9 |
06-L | M12×1.5 | 06 | 8.1 | 4.0 | 7.1 | 10 |
08-L | M14×1.5 | 08 | 10.1 | 6.0 | 7.1 | 10 |
10-L | M16×1.5 | 10 | 12.3 | 8.0 | 7.1 | 11 |
12-L | M18×1.5 | 12 | 14.3 | 10.0 | 7.1 | 11 |
15-L | M22×1.5 | 15 | 17.3 | 12.0 | 7.1 | 12 |
18-L | M26×1.5 | 18 | 20.3 | 15.0 | 7.6 | 12 |
22-L | M30×2.0 | 22 | 24.3 | 19.0 | 7.6 | 14 |
28-L | M36×2.0 | 28 | 30.3 | 24.0 | 7.6 | 14 |
35-L | M45×2.0 | 35 | 38.0 | 30.0 | 10.6 | 16 |
42-L | M52×2.0 | 42 | 45.0 | 36.0 | 11.1 | 16 |
06-S | M14×1,5 | 06 | 8.1 | 4.0 | 7.1 | 12 |
08-S | M16×1.5 | 08 | 10.1 | 5.0 | 7.1 | 12 |
10-S | M18×1.5 | 10 | 12.3 | 7.0 | 7.6 | 12 |
12-S | M20×1.5 | 12 | 14.3 | 8.0 | 7.6 | 12 |
14-S | M22×1.5 | 14 | 16.3 | 10.0 | 8.1 | 14 |
16-S | M24×1.5 | 16 | 18.3 | 12.0 | 8.6 | 14 |
20-S | M30×2.0 | 20 | 22.9 | 16.0 | 10.6 | 16 |
25-S | M36×2.0 | 25 | 27.9 | 20.0 | 12.1 | 18 |
30-S | M42×2.0 | 30 | 33.0 | 25.0 | 13.6 | 20 |
38-S | M52×2.0 | 38 | 41.0 | 32.0 | 16.1 | 22 |
Penyambung putar DKO 24 ° (DIN 3865 / DIN EN ISO 8434-4) dimensi kelengkapan tiub mampatan
TubeO.D. | Ø D5mm | |||
Saiz | T | Ø D2mm | Threadrakan sekerjarediameter | SWmm |
06-L | M12×1.5 | 5.5 | 10.38 | 14 |
08-L | M14×1.5 | 7.5 | 12.38 | 17 |
10-L | M16×1.5 | 9.7 | 14.38 | 19 |
12-L | M18×1.5 | 11.7 | 16.38 | 22 |
15-L | M22×1.5 | 14.7 | 20.38 | 27 |
18-L | M26×1.5 | 17.7 | 24.38 | 32 |
22-L | M30×2.0 | 21.7 | 27.84 | 36 |
28-L | M36×2.0 | 27.7 | 33.84 | 41 |
35-L | M45×2.0 | 34.5 | 42.84 | 50 |
42-L | M52×2.0 | 41.5 | 49.84 | 60 |
06-S | M14×1.5 | 5.5 | 12.38 | 17 |
08-S | M16×1.5 | 7.5 | 14.38 | 19 |
10-S | M18×1.5 | 9.7 | 16.38 | 22 |
12-S | M20×1.5 | 11.7 | 18.38 | 24 |
14-S | M22×1.5 | 13.5 | 20.38 | 27 |
16-S | M24×1.5 | 15.5 | 22.38 | 30 |
20-S | M30×2.0 | 19.5 | 29.84 | 36 |
25-S | M36×2.0 | 24.5 | 33.84 | 46 |
30-S | M42×2.0 | 29.5 | 39.84 | 50 |
38-S | M52×2.0 | 37.5 | 49.84 | 60 |
Kelengkapan tiub hidraulik ORFS lelaki hujung (ISO 8434-3 / SAE J1453) / dimensi
Ø D5 Saiz | TubeO.D. | T UN / UNF | T MejarikareadØ mm | Ø D3mm | |
inci | mm | ||||
4 | 1/4 | 6 | 9/16-18 | 14.0 | 5.0 |
6 | 5/16,3/8 | 8, 10 | 11/16-16 | 17.0 | 6.5 |
8 | 1/2 | 12 | 13/16-16 | 20.5 | 9.5 |
10 | 5/8 | 14, 15, 16 | 1-14 | 25.0 | 12.5 |
12 | 3/4 | 18, 20 | 1 3/16-12 | 30.0 | 15.5 |
16 | 7/8,1 | 22, 25 | 1 7/16-12 | 36.0 | 20.5 |
20 | 1 1/4 | 28, 30, 32 | 1 11/16-12 | 42.5 | 26.0 |
24 | 1 1/2 | 35, 38 | 2-12 | 50.5 | 32.0 |
32 | 2 | 50 | 2 1/2-12 | 63.0 | 45.0 |
Dimensi penyambung putar kelengkapan hidraulik ORFS wanita (ISO 8434-3 / SAE J1453) dimensi
Saiz | TubeO.D. | T UN / UNF | Ø D5 Threadrakan sekerjardiameter mm | SWmm | Ø D2mm | |
inci | mm | |||||
4 | 1/4 | 6 | 9/16-18 | 12.5 | 17 | 4.0 |
6 | 5/16,3/8 | 8, 10 | 11/16-16 | 16.0 | 22 | 6.5 |
8 | 1/2 | 12 | 13/16-16 | 19.0 | 24 | 9.0 |
10 | 5/8 | 14, 15, 16 | 1-14 | 23.0 | 30 | 11.5 |
12 | 3/4 | 18, 20 | 1 3/16-12 | 28.0 | 36 | 14.0 |
16 | 7/8,1 | 22, 25 | 1 7/16-12 | 34.0 | 41 | 20.0 |
20 | 1 1/4 | 28, 30, 32 | 1 11/16-12 | 40.5 | 50 | 26.0 |
24 | 1 1/2 | 35, 38 | 2-12 | 48.0 | 60 | 32.0 |
Dimensi hujung tiub suar kelengkapan hidraulik lelaki JIC (ISO 8434-2 / SAE J514) dimensi
Saiz | TubeO.D. | T UN / UNF | T MejarikareadØ mm | Ø D1mm | |
inci | mm | ||||
4 | 1/4 | 6 | 7/16-20 | 11.0 | 4.5 |
5 | 5/16 | 8 | 1/2-20 | 12.5 | 6.0 |
6 | 3/8 | 10 | 9/16-18 | 14.0 | 7.5 |
8 | 1/2 | 12 | 3/4-16 | 19.0 | 10.0 |
10 | 5/8 | 14, 15, 16 | 7/8-14 | 22.0 | 12.5 |
12 | 3/4 | 18, 20 | 1 1/16-12 | 27.0 | 15.5 |
14 | 7/8 | 22 | 1 3/16-12 | 30.0 | 18.0 |
16 | 1 | 25 | 1 5/16-12 | 33.0 | 21.5 |
20 | 1 1/4 | 28, 30, 32 | 1 5/8-12 | 41.0 | 27.5 |
24 | 1 1/2 | 35, 38 | 1 7/8-12 | 47.5 | 33.0 |
28* | 1 3/4 | 42 | 2 1/4-12 | 57.0 | 39.0 |
32 | 2 | – | 2 1/2-12 | 63.5 | 45.0 |
Dimensi penyambung putar kelengkapan hidraulik wanita (ISO 8434-2 / SAE J514) dimensi
Saiz | TubeO.D. | T UN / UNF | SWmm | Ø D5 Threadrakan sekerjardiameter mm | Ø D2mm | |
inci | mm | |||||
4 | 1/4 | 6 | 7/16-20 | 17 | 10.0 | 4.4 |
5 | 5/16 | 8 | 1/2-20 | 17 | 11.5 | 6.0 |
6 | 3/8 | 10 | 9/16-18 | 19 | 13.0 | 7.5 |
8 | 1/2 | 12 | 3/4-16 | 22 | 17.5 | 9.9 |
10 | 5/8 | 14, 15, 16 | 7/8-14 | 27 | 20.5 | 12.3 |
12 | 3/4 | 18, 20 | 1 1/16-12 | 32 | 25.0 | 15.5 |
14 | 7/8 | 22 | 1 3/16-12 | 35 | 28.0 | 18.0 |
16 | 1 | 25 | 1 5/16-12 | 38 | 31.0 | 21.5 |
20 | 1 1/4 | 28, 30, 32 | 1 5/8-12 | 50 | 39.0 | 27.5 |
24 | 1 1/2 | 35. 38 | 1 7/8-12 | 60 | 45.5 | 33.0 |
32 | 2 | – | 2 1/2-12 | 75 | 61.5 | 45.0 |
Dimensi Adapter Hidraulik Lelaki 60 ° kon (ISO / DIS 8434-6) dimensi
Saiz | T BSPP | D2 mm | D3 mm | L1 mm | T1 | T2 BSPP | |
BSPT | NPT (F) | ||||||
02 | G1/8A | 3.5 | 7.5 | 8 | 1/8 1/4 | 1/8 1/4 | 1/8 |
04 | G1/4A | 4.7 | 10.4 | 11 | 1/4 1/8 3/8 | 1/4 1/8 3/8 | 1/4 1/8 |
06 | G3/8A | 7.9 | 14.0 | 12 | 3/8 1/4 1/2 | 3/8 1/4 1/2 | 3/8 1/4 |
08 | G1/2A | 11.1 | 17.5 | 14 | 1/2 3/8 | 1/2 3/8 3/4 | 1/2 1/4 3/8 |
10 | G5/8A | 14.3 | 19.3 | 16 | 1/2 3/4 | 1/2 5/8 | |
12 | G3/4A | 16.7 | 22.9 | 16 | 3/4 1/2 1 | 3/4 1/2 1 | 3/4 1/4 3/8 1/2 5/8 |
16 | G1 A | 22.2 | 28.7 | 19 | 1 3/4 | 1 3/4 | 1 1/2 5/8 3/4 |
20 | G1 1/4A | 28.6 | 36.8 | 22 | 1 1/4 | 3/4 1 1 1/4 | |
24 | G1 1/2A | 33.3 | 42.7 | 22 | 1 1/2 | 1 1 1/4 1 1/2 | |
32 | G2 A | 46.0 | 54.6 | 25 | 1 1/2 2 | ||
Dimensi hujung kerucut DIN 60 ° (DIN 7631)
TubeO.D.mm | T | Ø D1mm | Ø D2mm | L1 mm | SWmm |
4–5 06 08 10 12 15 18 22 28 35 42 | M10×1.5 M12×1.5 M14×1.5 M16×1.5 M18×1.5 M22×1.5 M26×1.5 M30×1.5 M38×1.5 M45×1.5 M52×1.5 | 3 4 6 8 10 12 15 19 25 32 39 | 8.0 9.0 11.0 13.0 15.0 19.0 22.0 26.0 33.0 40.0 47.0 | 8 10 10 11 11 12 12 14 14 16 16 | 11 12 14 17 19 24 27 32 41 46 55 |
