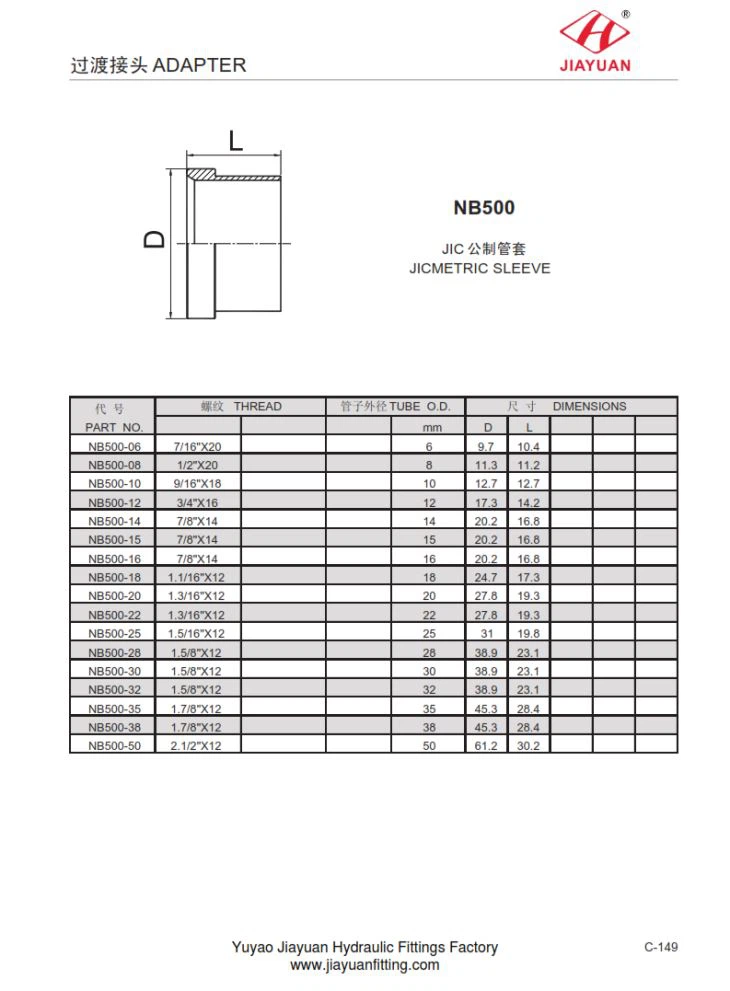

Carta saiz NB500 JIC METRIC CLEAN seperti berikut:
BAHAGIAN TIDAK. | THREAD | TUBE OD | DIMENSI | |
mm | D | L | ||
NB500-06 | 7/16 "X20 | 6 | 9.7 | 10.4 |
NB500-08 | 1/2 "X20 | 8 | 11.3 | 11.2 |
NB500-10 | 9/16 "X18 | 10 | 12.7 | 12.7 |
NB500-12 | 3/4 "X16 | 12 | 17.3 | 14.2 |
NB500-14 | 7/8 "X14 | 14 | 20.2 | 16.8 |
NB500-15 | 7/8 "X14 | 15 | 20.2 | 16.8 |
NB500-16 | 7/8 "X14 | 16 | 20.2 | 16.8 |
NB500-18 | 1.1 / 16 "X12 | 18 | 24.7 | 17.3 |
NB500-20 | 1.3 / 16 "X12 | 20 | 27.8 | 19.3 |
NB500-22 | 1.3 / 16 "X12 | 22 | 27.8 | 19.3 |
NB500-25 | 1.5 / 16 "X12 | 25 | 31 | 19.8 |
NB500-28 | 1.5 / 8 "X12 | 28 | 38.9 | 23.1 |
NB500-30 | 1.5 / 8 "X12 | 30 | 38.9 | 23.1 |
NB500-32 | 1.5 / 8 "X12 | 32 | 38.9 | 23.1 |
NB500-35 | 1.7 / 8 "X12 | 35 | 45.3 | 28.4 |
NB500-38 | 1.7 / 8 "X12 | 38 | 45.3 | 28.4 |
NB500-50 | 2.1 / 2 "X12 | 50 | 61.2 | 30.2 |
