Kategori produk: JIS standard hidraulik kelengkapan untuk pelbagai penyesuai
Carta saiz thread JIS dihasilkan seperti: BSPP Threads: ISO 228-1 G, JIS B0202; BSPT Threads: ISO 7/1, JIS B0203.
Kelengkapan JIS direka dengan suar 30 ° dan kon hubungan 60 ° ke hujung hos, juga digunakan sebagai penyambung hos.
Untuk jenis thread paip: JIS B2351 port, Npt, SAE ORB adapter dll

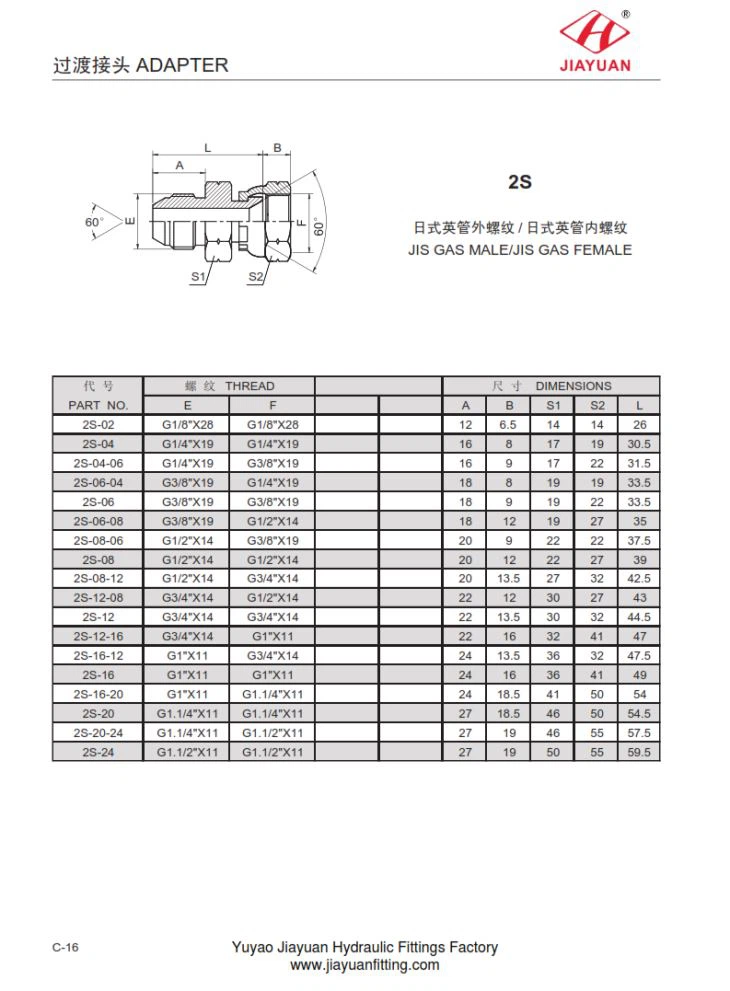

Spesifikasi wanita wanita 2S JIS GAS MALE seperti berikut:
PAR T TIDAK . | THREA D | DIMENSI S | |||||
E | F | A | B | S 1 | S 2 | L | |
2S-0 2 | G1 / 8 "X2 8 | G1 / 8 "X2 8 | 1 2 | 6. 5 | 1 4 | 1 4 | 2 6 |
2S-0 4 | G1 / 4 "X1 9 | G1 / 4 "X1 9 | 1 6 | 8 | 1 7 | 1 9 | 30. 5 |
2S-04-0 6 | G1 / 4 "X1 9 | G3 / 8 "X1 9 | 1 6 | 9 | 1 7 | 2 2 | 31. 5 |
2S-06-0 4 | G3 / 8 "X1 9 | G1 / 4 "X1 9 | 1 8 | 8 | 1 9 | 1 9 | 33. 5 |
2S-0 6 | G3 / 8 "X1 9 | G3 / 8 "X1 9 | 1 8 | 9 | 1 9 | 2 2 | 33. 5 |
2S-06-0 8 | G3 / 8 "X1 9 | G1 / 2 "X1 4 | 1 8 | 1 2 | 1 9 | 2 7 | 3 5 |
2S-08-0 6 | G1 / 2 "X1 4 | G3 / 8 "X1 9 | 2 0 | 9 | 2 2 | 2 2 | 37. 5 |
2S-0 8 | G1 / 2 "X1 4 | G1 / 2 "X1 4 | 2 0 | 1 2 | 2 2 | 2 7 | 3 9 |
2S-08-1 2 | G1 / 2 "X1 4 | G3 / 4 "X1 4 | 2 0 | 13. 5 | 2 7 | 3 2 | 42. 5 |
2S-12-0 8 | G3 / 4 "X1 4 | G1 / 2 "X1 4 | 2 2 | 1 2 | 3 0 | 2 7 | 4 3 |
2S-1 2 | G3 / 4 "X1 4 | G3 / 4 "X1 4 | 2 2 | 13. 5 | 3 0 | 3 2 | 44. 5 |
2S-12-1 6 | G3 / 4 "X1 4 | G1 "X1 1 | 2 2 | 1 6 | 3 2 | 4 1 | 4 7 |
2S-16-1 2 | G1 "X1 1 | G3 / 4 "X1 4 | 2 4 | 13. 5 | 3 6 | 3 2 | 47. 5 |
2S-1 6 | G1 "X1 1 | G1 "X1 1 | 2 4 | 1 6 | 3 6 | 4 1 | 4 9 |
2S-16-2 0 | G1 "X1 1 | G1.1 / 4 "X1 1 | 2 4 | 18. 5 | 4 1 | 5 0 | 5 4 |
2S-2 0 | G1.1 / 4 "X1 1 | G1.1 / 4 "X1 1 | 2 7 | 18. 5 | 4 6 | 5 0 | 54. 5 |
2S-20-2 4 | G1.1 / 4 "X1 1 | G1.1 / 2 "X1 1 | 2 7 | 1 9 | 4 6 | 5 5 | 57. 5 |
2S-2 4 | G1.1 / 2 "X1 1 | G1.1 / 2 "X1 1 | 2 7 | 1 9 | 5 0 | 5 5 | 59. 5 |
