Jenis produk: 1F o kelengkapan pemasangan meterai muka cincin
Piawaian Industri: SAE J1453, ISO 8434-3
Sambungan E ke F gaya: ORFS MALE O-RING
Bentuk: kesatuan lurus
Kelengkapan ORFS Kedudukan tekanan kerja: 3215 psi hingga 5800 psi, 216 bar hingga 400 bar.
Cekap muka Orfs o saiz cincin kit dan Reka bentuk cincin muka cincin O kami juga boleh menawarkan.
Perbezaan antara meterai muka cincin dan meterai bos cincin
Kelengkapan Bahan: Brass; Keluli karbon; Keluli tahan karat
Permohonan: Peralatan Pertanian, Proses Automotif, Pemindahan Kimia, Peralatan Pembinaan, Pemindahan Bahan Api, Hidrolik, Peralatan Pembuatan, Marin, Pengendalian Bahan, Peralatan Mudah Alih, Minyak, Pembungkus, Pengangkutan

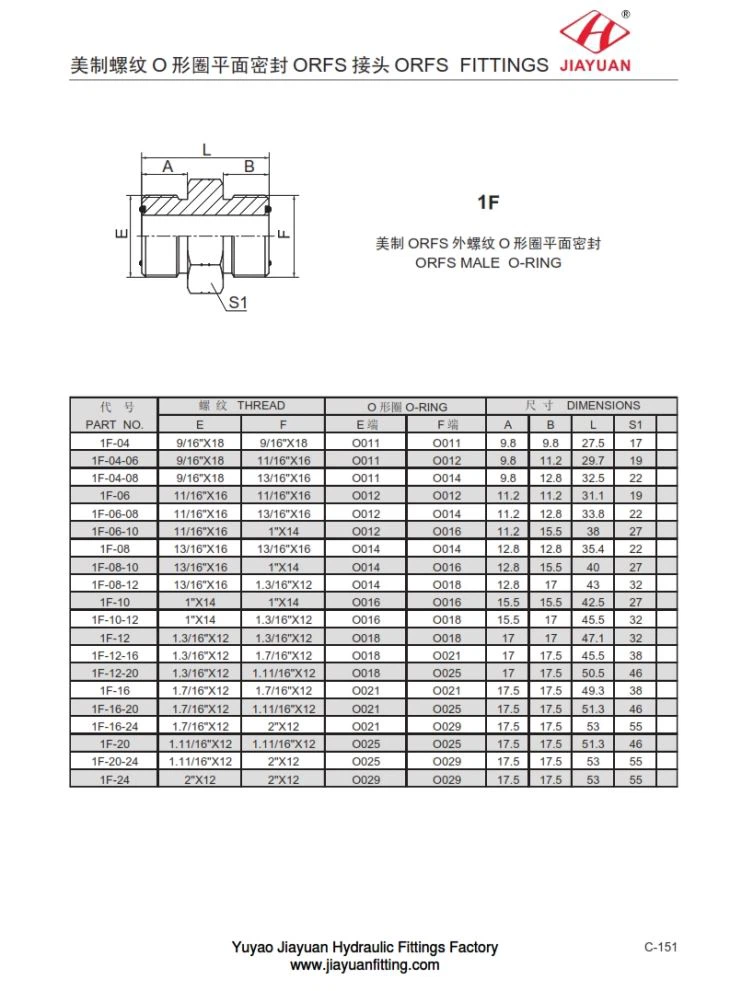

1F ORFS Male O-ring Dimension Chart saiz carta seperti berikut:
PA RT N O. | T HR EA D | O O- RING | DIM E N S I O NS | ||||||
E | F | E | F | A | B | L | S 1 | ||
1 F- 04 | 9/16 " X 18 | 9/16 " X 18 | O 011 | O 011 | 9.8 | 9.8 | 27.5 | 17 | |
1 F- 04 - 06 | 9/16 " X 18 | 11/16 " X 16 | O 011 | O 012 | 9.8 | 11.2 | 29.7 | 19 | |
1 F- 04 - 08 | 9/16 " X 18 | 13/16 " X 16 | O 011 | O 014 | 9.8 | 12.8 | 32.5 | 22 | |
1 F- 06 | 11/16 " X 16 | 11/16 " X 16 | O 012 | O 012 | 11.2 | 11.2 | 31.1 | 19 | |
1 F- 06 - 08 | 11/16 " X 16 | 13/16 " X 16 | O 012 | O 014 | 11.2 | 12.8 | 33.8 | 22 | |
1 F- 06 - 10 | 11/16 " X 16 | 1 " X 14 | O 012 | O 016 | 11.2 | 15.5 | 38 | 27 | |
1 F- 08 | 13/16 " X 16 | 13/16 " X 16 | O 014 | O 014 | 12.8 | 12.8 | 35.4 | 22 | |
1 F- 08 - 10 | 13/16 " X 16 | 1 " X 14 | O 014 | O 016 | 12.8 | 15.5 | 40 | 27 | |
1 F- 08 - 12 | 13/16 " X 16 | 1.3 / 16 " X 12 | O 014 | O 018 | 12.8 | 17 | 43 | 32 | |
1 F- 10 | 1 " X 14 | 1 " X 14 | O 016 | O 016 | 15.5 | 15.5 | 42.5 | 27 | |
1 F- 10 - 12 | 1 " X 14 | 1.3 / 16 " X 12 | O 016 | O 018 | 15.5 | 17 | 45.5 | 32 | |
1 F- 12 | 1.3 / 16 " X 12 | 1.3 / 16 " X 12 | O 018 | O 018 | 17 | 17 | 47.1 | 32 | |
1 F- 12 - 16 | 1.3 / 16 " X 12 | 1.7 / 16 " X 12 | O 018 | O 021 | 17 | 17.5 | 45.5 | 38 | |
1 F- 12 - 20 | 1.3 / 16 " X 12 | 1.11 / 16 " X 12 | O 018 | O 025 | 17 | 17.5 | 50.5 | 46 | |
1 F- 16 | 1.7 / 16 " X 12 | 1.7 / 16 " X 12 | O 021 | O 021 | 17.5 | 17.5 | 49.3 | 38 | |
1 F- 16 - 20 | 1.7 / 16 " X 12 | 1.11 / 16 " X 12 | O 021 | O 025 | 17.5 | 17.5 | 51.3 | 46 | |
1 F- 16 - 24 | 1.7 / 16 " X 12 | 2 " X 12 | O 021 | O 029 | 17.5 | 17.5 | 53 | 55 | |
1 F- 20 | 1.11 / 16 " X 12 | 1.11 / 16 " X 12 | O 025 | O 025 | 17.5 | 17.5 | 51.3 | 46 | |
1 F- 20 - 24 | 1.11 / 16 " X 12 | 2 " X 12 | O 025 | O 029 | 17.5 | 17.5 | 53 | 55 | |
1 F- 24 | 2 " X 12 | 2 " X 12 | O 029 | O 029 | 17.5 | 17.5 | 53 | 55 | |
